:::: Terex Telelect Hi Ranger ::::

This information is directly sourced from Terex.com

TEREX Utilities Delivers Value TEREX Utilities, founded in 1945 with the advent of thegroundbreaking Tel-E-lect digger derrick, has been rooted in the growth and maintenance of this nation's utility infrastructure for over 60 years. We've seen the good times and the bad and through it all, we've been there for you. We'velistened to you when you've approached us with problems that you run into during yourdaily operations and have turned them into workable solutions for you.throughout your good times and your bad times.

Now, as we're traveling together deep into the 21st century, we are proud to be a part of the next exciting phase of providing you with state-of-the-art solutions steeped in the tradition of those people that built the power and communication grid.hard-working and inventive.

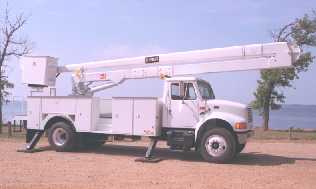

Terex Hi Ranger 5FC Bucket Truck

TEREX | TELELECT Hi-Ranger 5FC Series Non-Overcenter Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 45.6 - 65 ft. (13.9 - 19.8 m)
  • Horizontal reach 27.5 - 40.3 ft. (8.4 - 12.3 m)

Terex Hi-Ranger Model 5TcTEREX | TELELECT Hi-Ranger 5TC Series Non-Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 57 to 60 ft. (17.4 - 18.3 m)
  • Horizontal reach 36.6 - 38.3 ft. (11.2 - 11.7 m)
  • Material handling capacity up to 1,500 lbs. (680 kg)

Terex Hi-Ranger 6HTEREX | TELELECT Hi-Ranger 6H Series Non-Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 65 - 80 ft. (19.8 - 24.4 m)
  • Horizontal reach 36.3 - 41.6 ft. (11.0 - 12.7 m)
  • Material handling capacity up to 1,500 lbs. (680 kg)

TEREX | TELELECT Hi-Ranger 6TC Series Non-Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 65 - 70 ft (19.8 - 21.3 m)
  • Horizontal reach 39.1 - 41.8 ft. (11.9 - 12.7 m)
  • Material handling capability up to 1,500 lbs. (680 kg)

Terex Hi-Ranger Backyard TLTEREX | TELELECT Hi-Ranger Backyard TL Series Telescopic Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working Height:  41.2 ft.  (12.6 m)
  • Horizontal Reach:  26.7 ft.  (8.1 m)

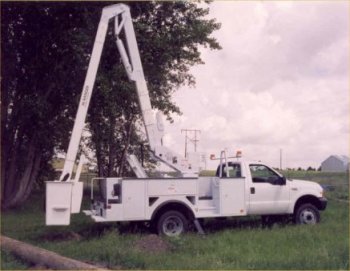

Terex Hi-Ranger HR-37M / HR-40MTEREX | TELELECT Hi-Ranger HR-37M / HR-40 M Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 42 - 45 ft. (12.8 - 13.7 m)
  • Horizontal reach 27.1 - 28.9 ft. (8.3 - 8.8 m)
  • Material handling capability up to 1,000 lbs. (454 kg)
Terex Hi-Ranger HRMTEREX | TELELECT Hi-Ranger HRM Series Overcenter Material Handling Aerial Device

Terex Telelect digger derricks have over a 55-year track record for being the best in quality, design, and performance.

  • Sheave height 40.9 - 45.5 ft (12.5 - 13.9 m)
  • Winch capacity up to 26,590 lbs. (12,061 kg)
  • Capacity at 10 ft. radius up to 10,110 lbs. (4,586 kg)
  • Working heights 47.5 - 60 ft. (14.5 - 18.3 m)
  • Side reach 35.6 - 48.1 ft. (11.2 - 14.7 m)
  • Material handling capacity up to 1,900 lbs. (862 kg)

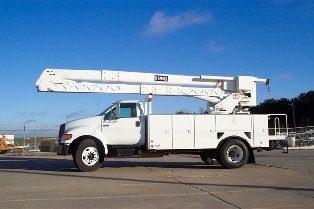

Terex Hi-Ranger HRXTEREX | TELELECT HI-RANGER HRX SERIES Overcenter, Material Handling Aerial Device

This Overcenter Aerial Device with a Non-Compensating Boom provides:

  • Working Heights of 57.25 ft - 65.25 ft.
  • Overcenter Side Reach Ranging from 45.25 ft - 53.25 ft.
  • Non-Overcenter Side Reach Ranging from 33.7 ft - 46.2 ft depening on the Lower Boom Articulation chosen

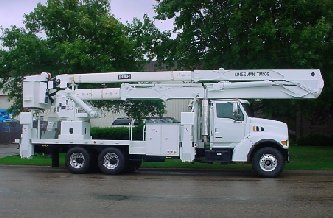

Terex Hi-Ranger Linesman TM 105TEREX | TELELECT HI-RANGER LINESMAN SERIES TM 105 Non-Overcenter, Articulating, Telescopic Aerial Device

The Linesman Series provides an answer to your transmission aerial needs.  The TM105 provides:

  • 105.0 ft (32.0 m) of Working Height
  • 51.0 ft (15.5 m) of Side Reach
  • Material Handling Capacity Up to 1500 lbs.
Terex Hi-Ranger OMTEREX | TELELECT Hi-Ranger OM Series Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 47.5 - 62 ft. (14.5 - 18.9 m)
  • Side reach 35 - 48.5 ft. (10.7 - 14.8 m)
  • Material handling capacity up to 2,000 lbs. (907 kg)

Terex Hi-Ranger RMTEREX | TELELECT Hi-Ranger RM Series Non-Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working heights 65 to 80 ft. (20.0 - 24.4 m)
  • Optional single and double hydraulic lifts available for 13, 15 & 25 ft. (4.6, 7.6 m) increased working height
  • Side reach 38.8 to 46.5 ft. (11.8 - 12.7 m)
  • Material handling capacity up to 2,000 lbs. (907 kg)

Terex Hi-Ranger SCTEREX | TELELECT Hi-Ranger SC Series Overcenter Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 41 - 50 ft. (12.5 - 15.2 m)
  • Horizontal reach 27.6 - 34.3 ft. (11.2 - 14.7 m)

Terex Hi-Ranger T292TEREX | TELELECT Hi-Ranger T292 Series Telescopic Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working heights 33.5 - 34.3 ft. (10.2 - 10.4 m)
  • Side reach 20.9 - 23.2 ft. (6.4 - 7.1 m)
  • Available in either insulated or non-insulated versions

Terex Hi-Ranger TCX Aerial DeviceTEREX | TELELECT Hi-Ranger TCX Series Non-Overcenter, Material Handling Aerial Device

The Hi-Ranger TCX Series is the latest addition to the Telelect Non-Overcenter Aerial Devices.  The TCX Series provides:

  • Working Heights of 57.0 ft and 59.8 ft.
  • Optional Lower Boom Articulations of either 100, 110, or 118 degrees
  • Side Reach ranging from 33.7 ft to 42.25 ft depending on your choice of Lower Boom Articulation

Terex Hi-Ranger TL Aerial DeviceTEREX | TELELECT Hi-Ranger TL Series Telescopic Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 40.4 - 44.6 ft. (12.3 - 13.6 m)
  • Optional 10 ft. (3m) lift available
  • Side reach 25 - 26.7 ft (7.6 m - 8.1 m)

Terex Hi-Ranger TLM Aerial DeviceTEREX | TELELECT Hi-Ranger TLM Series Telescopic Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 45.6 - 65 ft. (13.9 - 19.8 m)
  • Horizontal reach 27.5 - 40.3 ft. (8.4 - 12.3 m)
  • Working height 42.2 - 54.5 ft. (12.9 - 16.6 m)
  • Side reach 28 - 36 ft. (8.5 - 11 m)
  • Material handling capacity up to 1,500 lbs (680 kg)

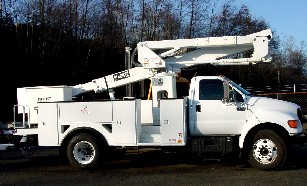

Terex Hi-Ranger TLP Aerial DeviceTEREX | TELELECT Hi-Ranger TLP Series Telescopic Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 42.0-55.0 ft. (12.8 -16.8 m)
  • Optional 10 ft. (3m) lift available
  • Side reach 28 - 36 ft (8.5 - 11.0 m)

Terex Hi-Ranger TPL Aerial DeviceTEREX | TELELECT Hi-Ranger TPL Series Telescoping Articulating Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.


  • Working height 34 - 45 ft. (10.4 - 13.7 m)
  • Side reach 28 - 36 ft. (8.5 - 11 m)

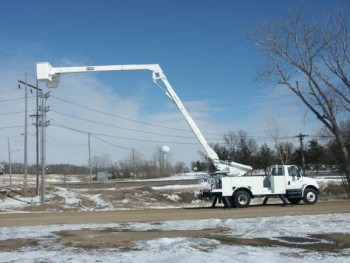

Terex Hi-Ranger XM Aerial DeviceTEREX | TELELECT Hi-Ranger XM Series Overcenter Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 55 - 65 ft. (16.8 - 19.8 m)
  • Optional single and double hydraulic lifts available for 13, 15, & 25 ft. (4.6, 7.6 m)
  • Side reach 41.6 - 51.6 ft. (12.7 - 15.7 m)
  • Material handling capacity up to 2,000 lbs. (907 kg)

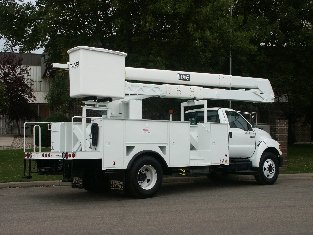

Terex Hi-Ranger XML Aerial DeviceTEREX | TELELECT HI-RANGER XML SERIES Overcenter, Material Handling Aerial Device

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working height 57.25 - 65.25 ft. (17.4 - 20.0 m)
  • Overcenter Side Reach 45.25 - 53.25 ft. (13.8 - 16.2 m)
  • Material handling capacity up to 2,000 lbs. (907 kg)
  • Optional Lower Boom Articulations Available
  • Non-Overcenter Side Reach varies depending upon chosen Lower Boom Articulation

Terex Hi-Ranger XT Aerial DeviceTEREX | TELELECT Hi-Ranger XT Series Overcenter Aerial Device for Tree Trimming

Hi-Ranger products are industry known for their smooth boom movement and precise control and reliability.

  • Working heights 57 - 65 ft. (17.4 - 19.8 m)
  • Optional 10 ft. (3 m) transverse lift available for additional 10 ft. working height
  • Side reach 42 - 49.9 ft. (12.8 - 15.2 m)



>
